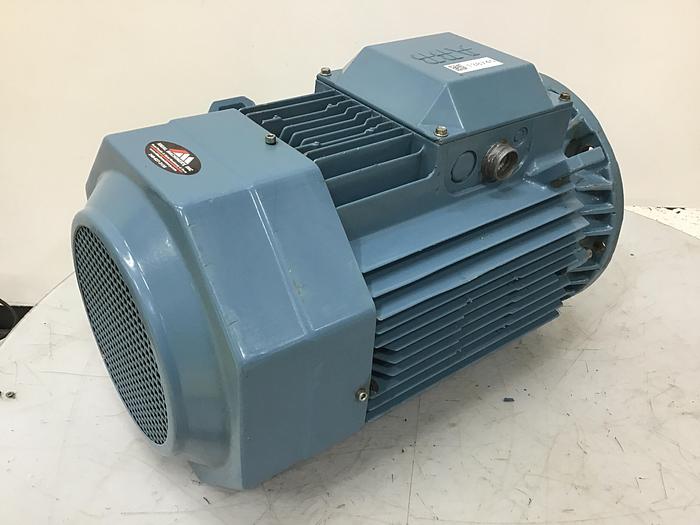

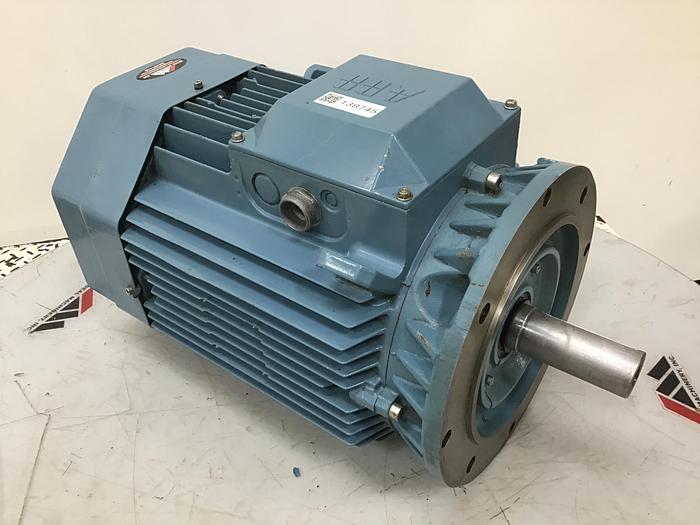

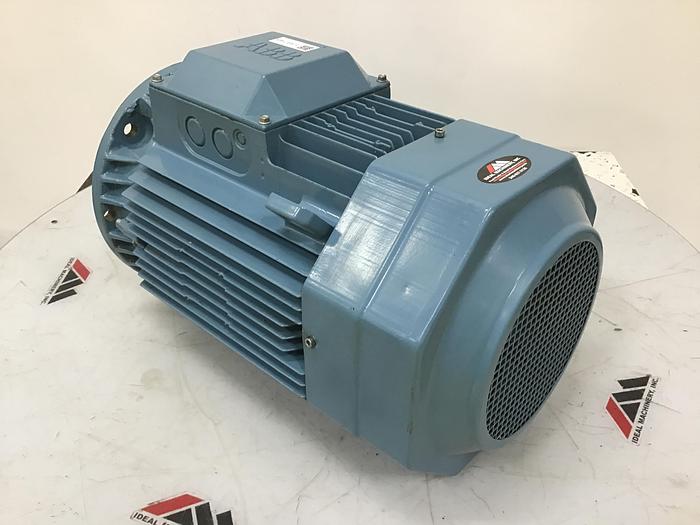

ABB M3AA 160M4 B5 Motor Used

20 HP

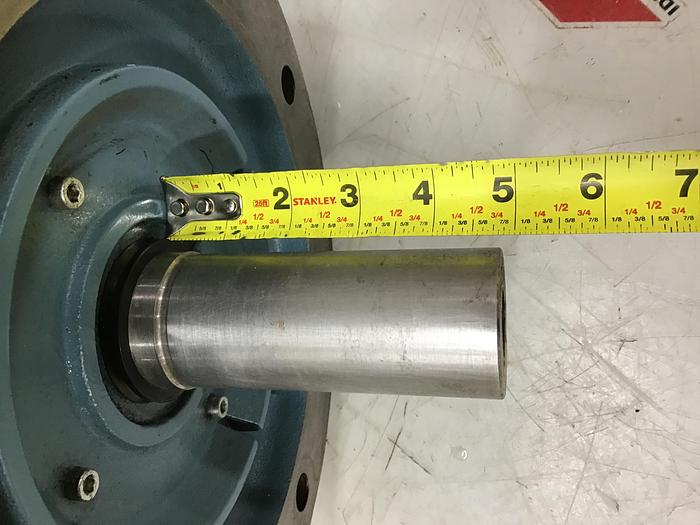

5" Shaft Length

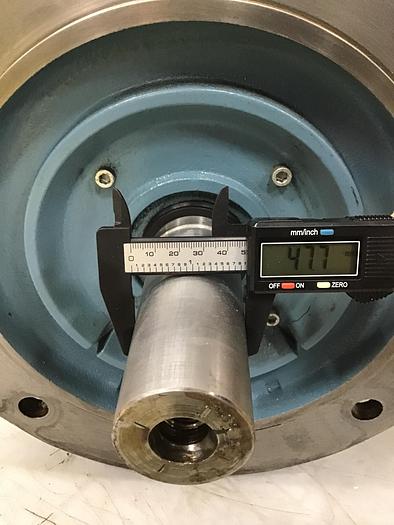

47.7 mm (2") Shaft Diameter

**The original motor nameplate was missing at removal. Specifications and model details below were determined using physical measurements and the OEM motor specs for Battenfeld BA750 CD Plus machines of this vintage. The specs provided are based on available information, but cannot be confirmed.

160 frame

M core length

4-pole (1750 RPM)

15 kW / 20 HP

B5 flange mount

230/460V or 400/690V

Tested Good

Removed from:

75 Ton Battenfeld Injection Molding Machine

Model: BA750 CD Plus

Serial:  A750510001 12854

Buyers are welcome to inspect equipment prior to purchase.

Expedited shipping services are available upon request.

This piece is located at Ideal Machinery, Inc. on our showroom floor.

Located at: 10230 N. Holly Rd, Holly MI 48442

All taxes due are the responsibility of purchaser.
