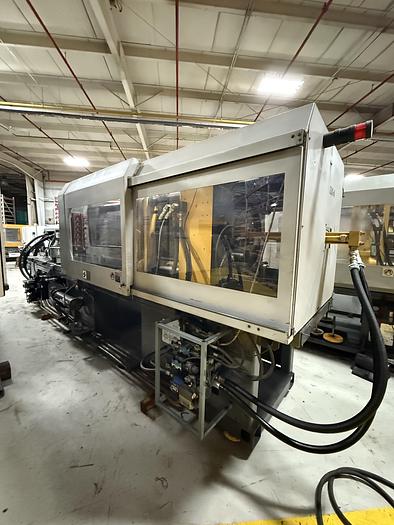

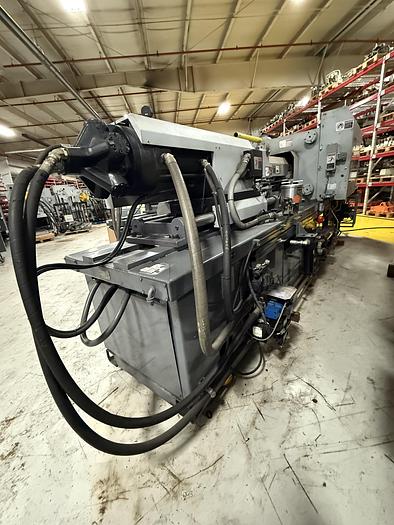

VAN DORN DEMAG 230 Ton Injection Mold Machine 230HT720 USED

Model: 230HT720

Serial: 1317

Year: 2000

HT Series

230 Ton

14.7 Oz Shot Size

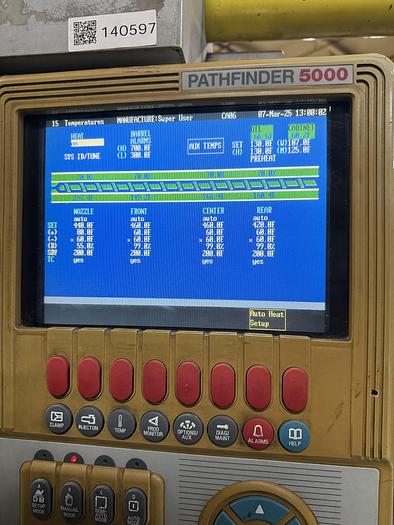

Pathfinder 5000 Control

Toggle Clamp

22" x 22" Tiebars

32" x 32" Platen

20" Clamp Stroke

42" Daylight Max

7" Min Mold Height

1.97" (50 mm) Screw Diameter

23,757 PSI Injection Pressure

8.9" Injection Stroke

 286 RPM Screw Speed

4.5" Ejector Stroke

4.9 Ejector Tonnage

40 HP Motor

13.7 kW Heater

56 GPM Pump Output

120 Gallon Oil Capacity

460 Volt

3 Phase

60 Hz

Buyers are welcome to inspect equipment prior to purchase.

Expedited shipping services are available upon request.

This piece is located at Ideal Machinery, Inc. on our showroom floor.

Located at: 10230 N. Holly Rd, Holly MI 48442

All taxes due are the responsibility of purchaser.
