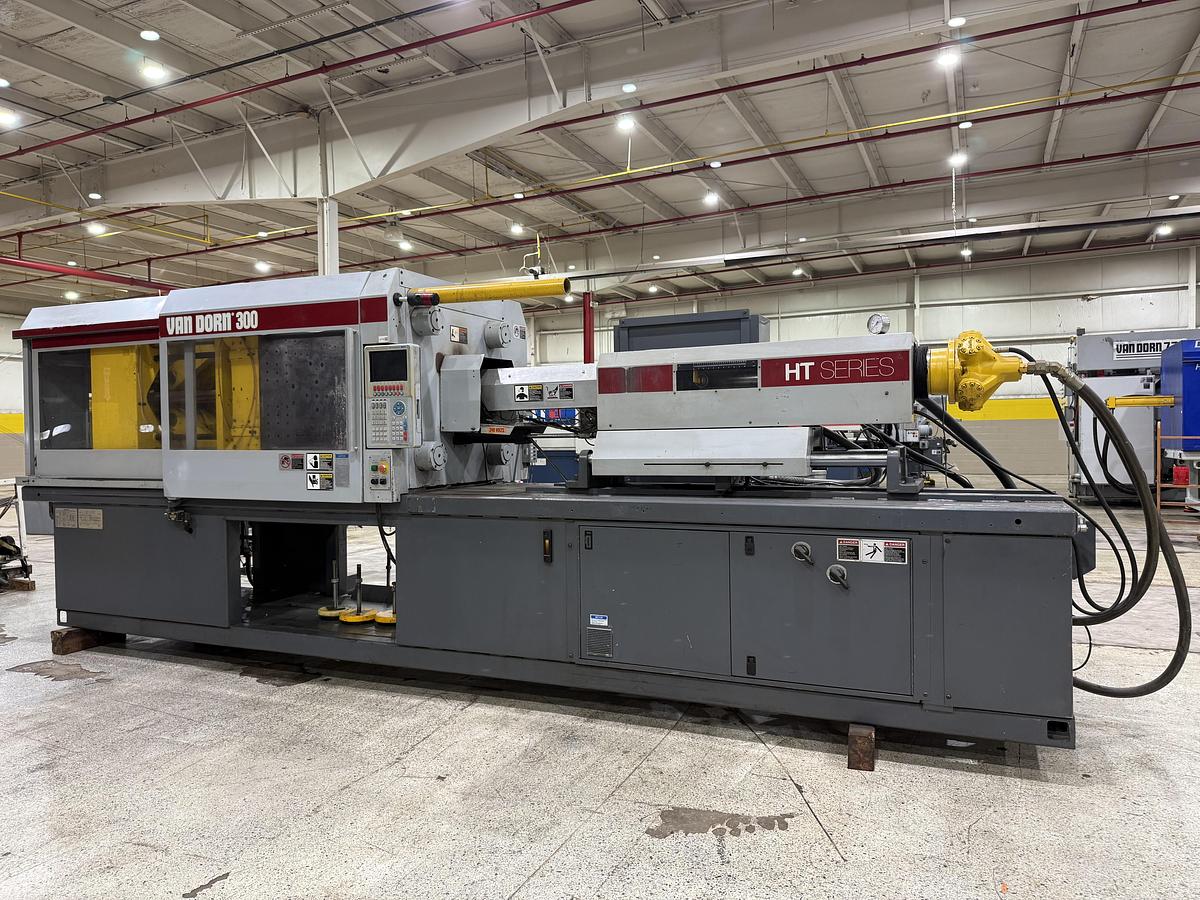

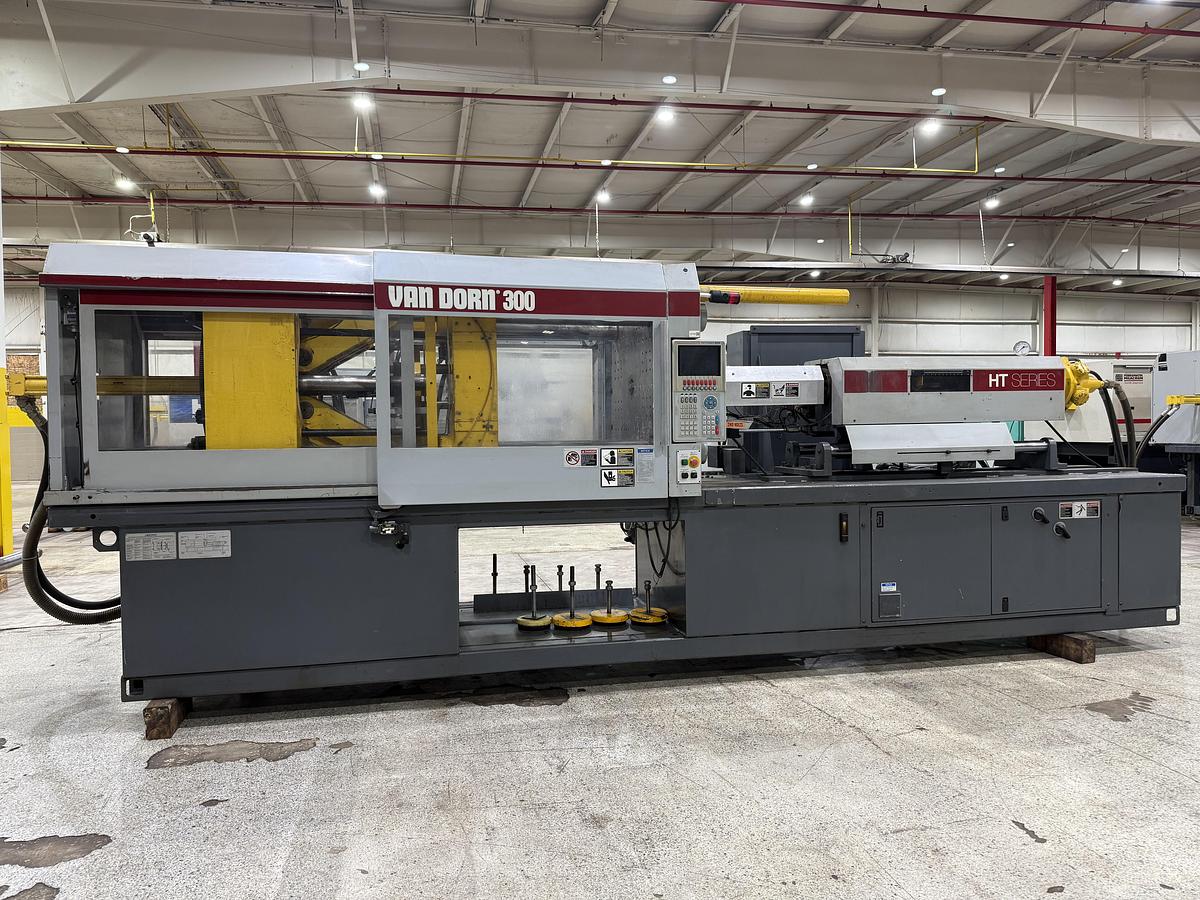

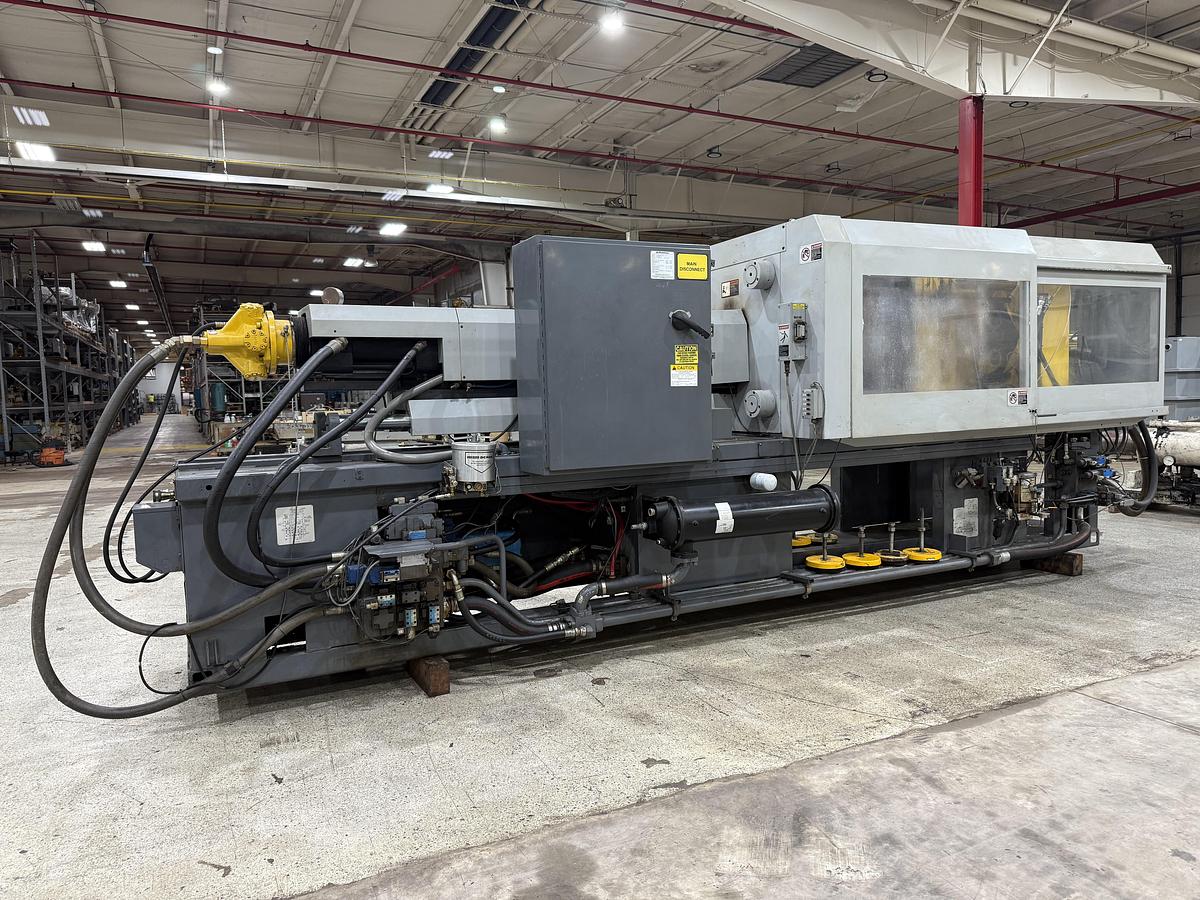

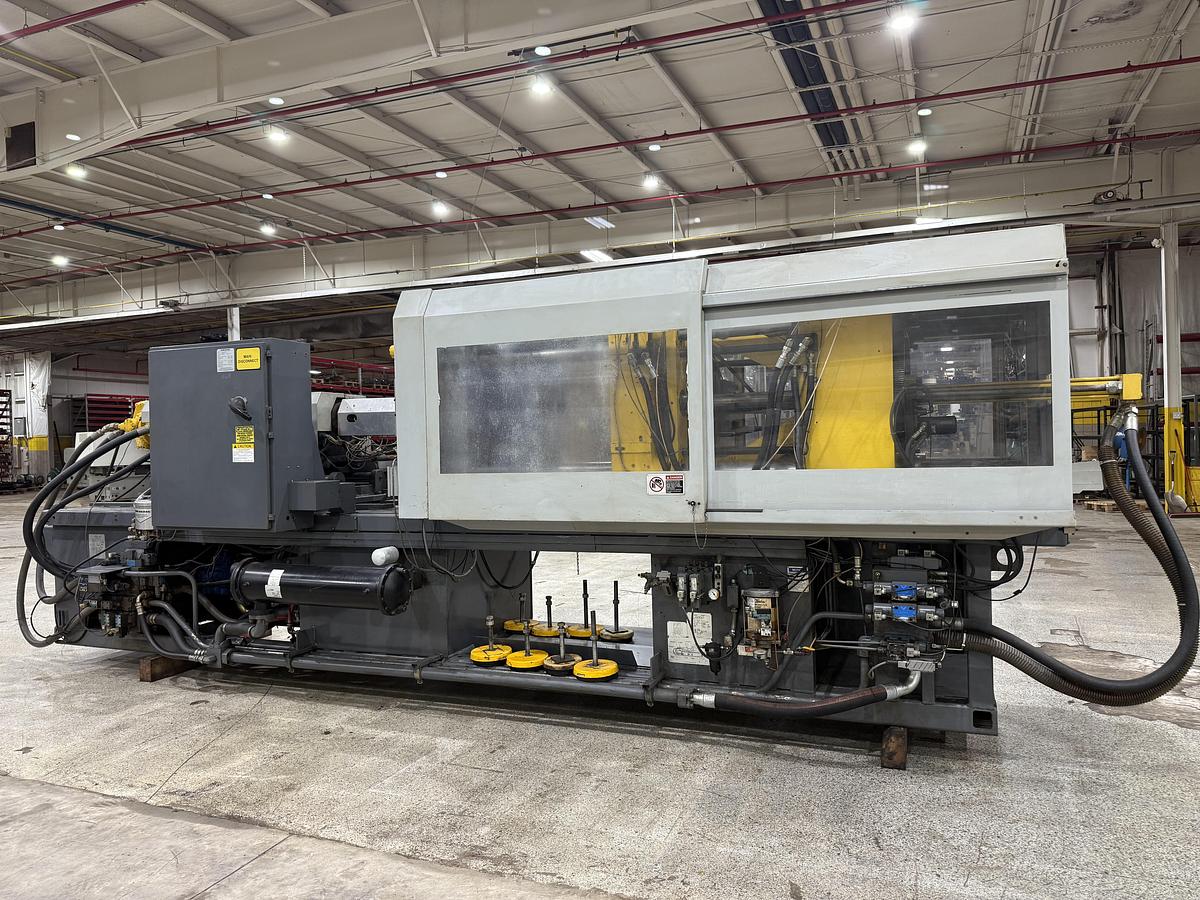

Van Dorn 300 Ton Injection Molding Machine 300HT14 USED

300 Ton

14 Oz Shot Size

Pathfinder 5000 Control

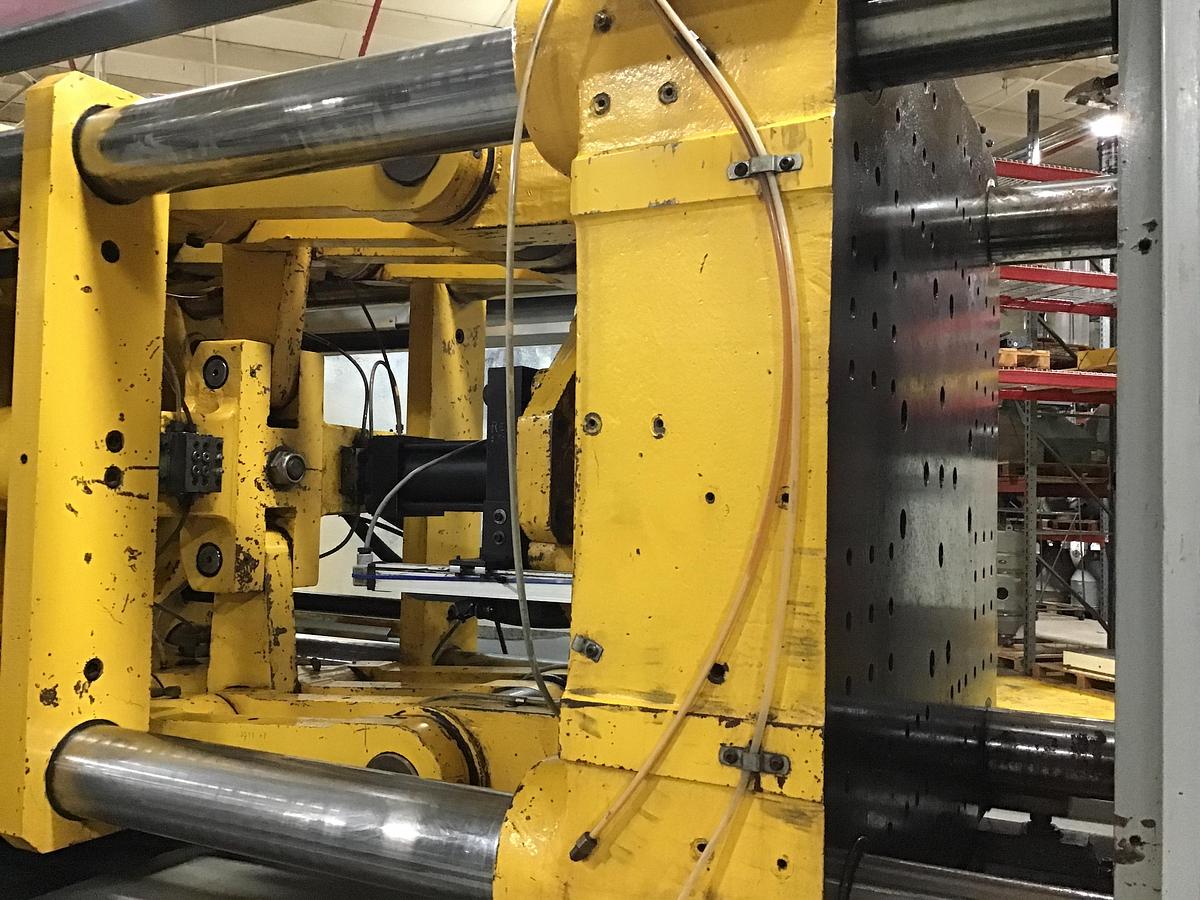

Toggle Clamp

25" x 25" Tiebars

37" x 37" Platen

24" Clamp Stroke

49" Daylight Max

8"/25" Min/Max Mold Height

1.97" (50 mm) Screw Diameter

20,100 PSI Injection Pressure

8.88" Injection Stroke

30-290 RPM Screw Speed

6" Ejector Stroke

8.3 Ejector Tonnage

50 HP Motor

15.5 kW Heater

160 Gallon Oil Capacity

68 GPM Pump Output

460 Volt

3 Phase

60 Hz

Expedited shipping services are available upon request.

All taxes due are the responsibility of purchaser.

Visitors are welcome to inspect equipment prior to purchase.

This piece is located at Ideal Machinery, Inc. on our showroom floor.

Located at: 10230 N. Holly Rd, Holly MI 48442.
