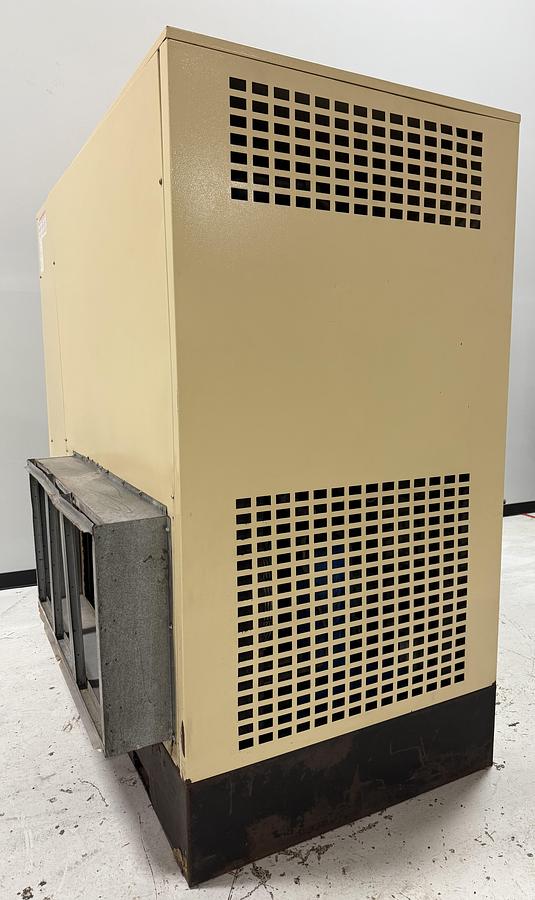

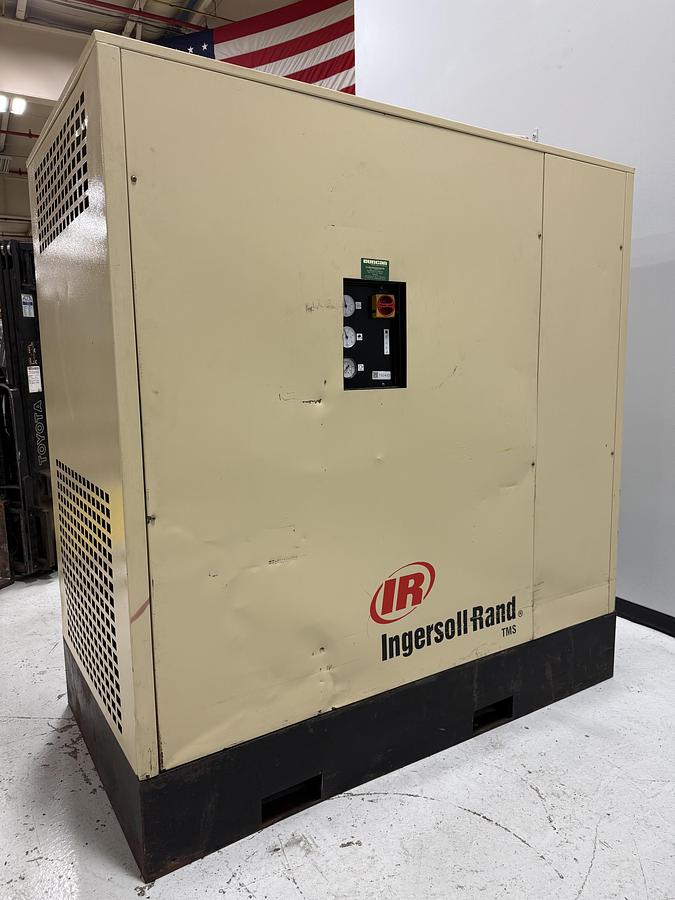

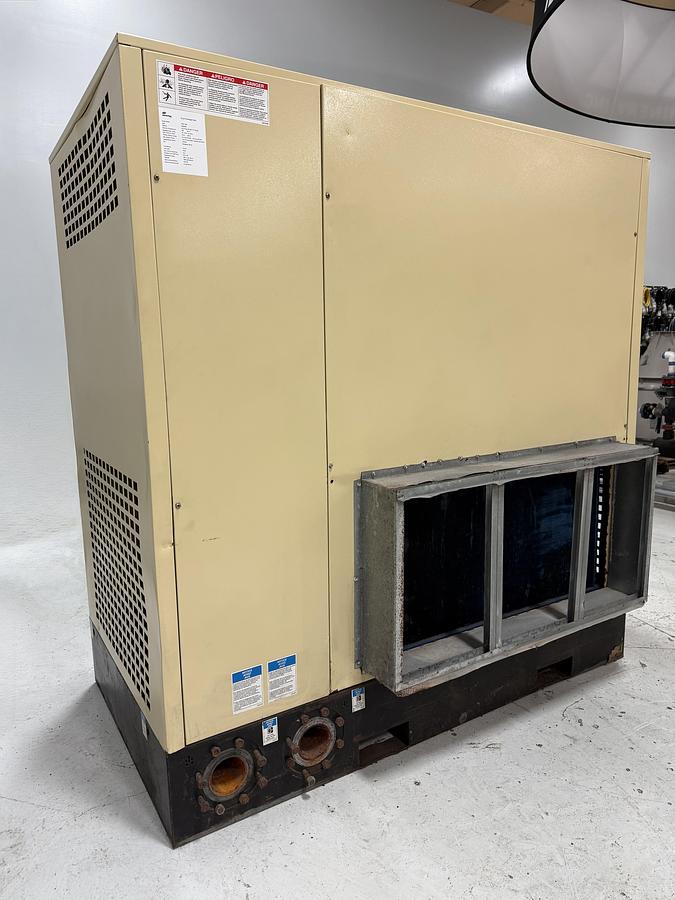

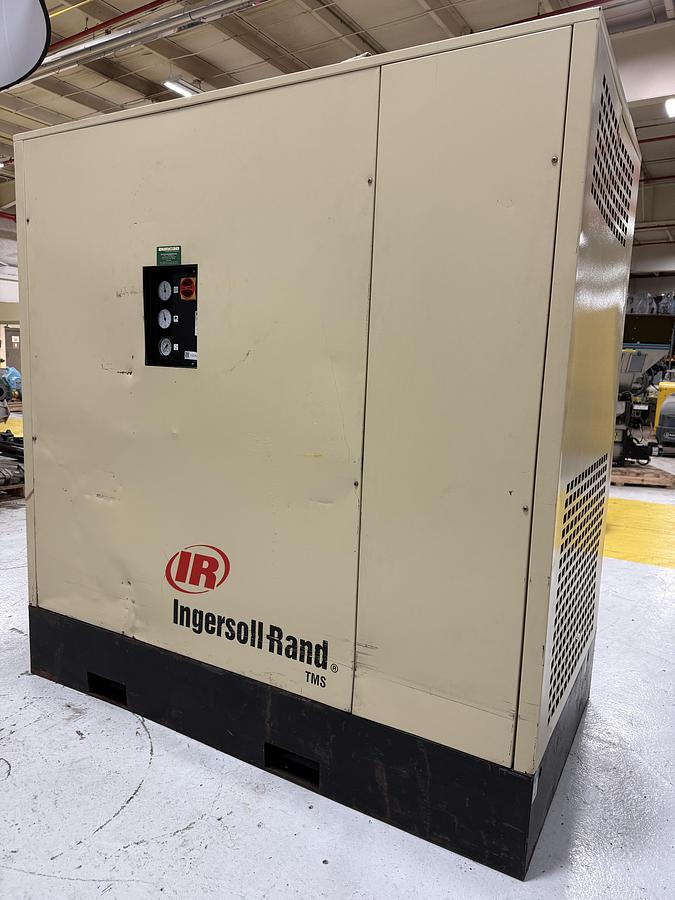

2002 Ingersoll Rand TMS 1420 Refrigerated Air Dryer USED

Refrigerated Air Dryer

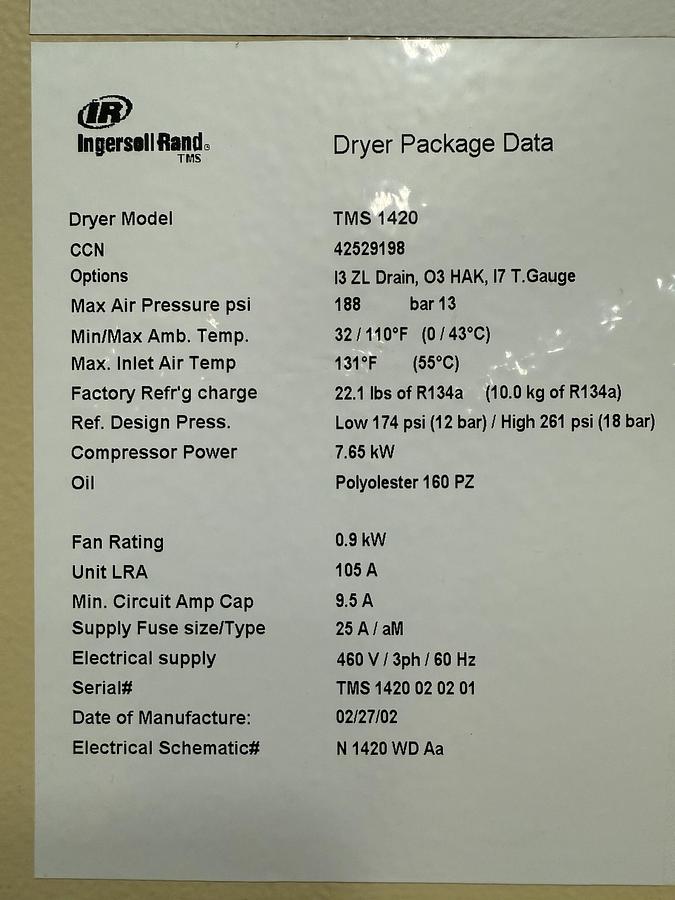

Model Number: TMS 1420

CCN: 42529198

Options: I3 ZL Drain, O3 HAK, I7 T.Gauge

Maximum Air Pressure: 188 PSI (13 bar)

Minimum / Maximum Ambient Temperature: 32°F – 110°F (0°C – 43°C)

Maximum Inlet Air Temperature: 131°F (55°C)

Factory Refrigerant Charge: 22.1 lbs of R-134A (10.0 kg)

Refrigerant Design Pressure:

• Low Side: 174 PSI (12 bar)

• High Side: 261 PSI (18 bar)

Compressor Power: 7.65 kW

Fan Rating: 0.9 kW

Unit LRA: 105 A

Minimum Circuit Ampacity: 9.5 A

Supply Fuse Size / Type: 460 V / 3 Phase / 60 Hz

Electrical Schematic #: N1420 WD Aa

Date of Manufacture: 02/27/02

Oil Type: Polyolester 160 PZ

**Note: We do not have the ability to put it under load, but everything has been function tested and appears to be in working order.

Buyers are welcome to inspect equipment prior to purchase.

Expedited shipping services are available upon request.

This piece is located at Ideal Machinery, Inc. on our showroom floor.

Located at: 10230 N. Holly Rd, Holly MI 48442

All taxes due are the responsibility of purchaser.
