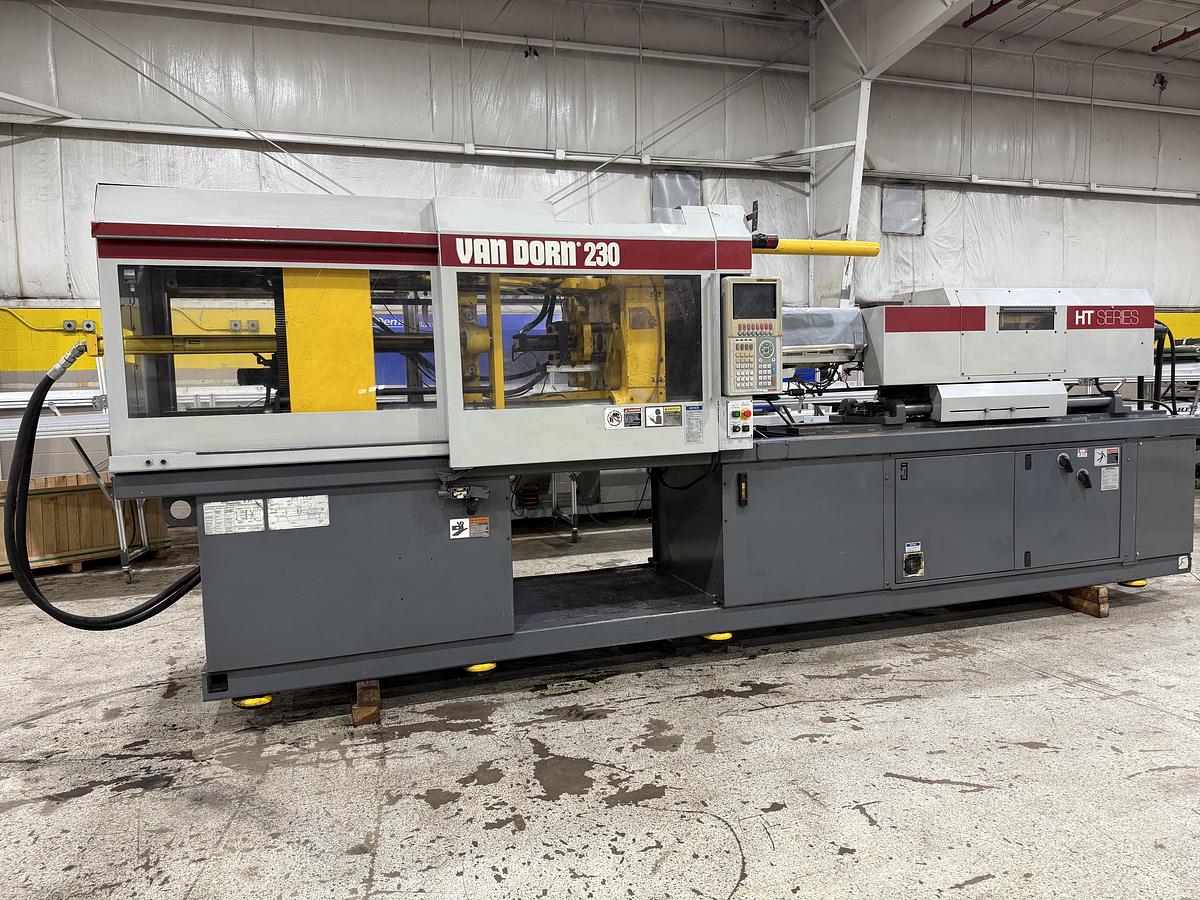

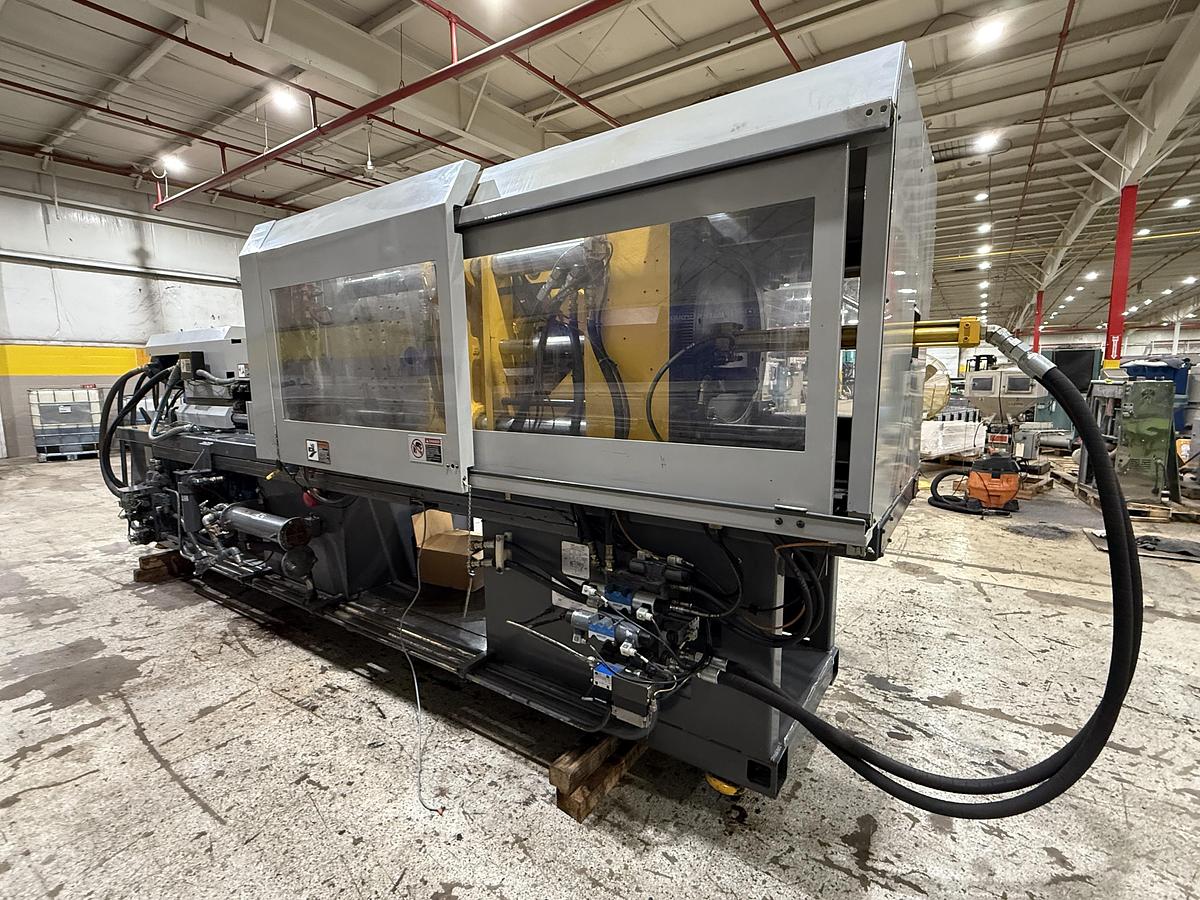

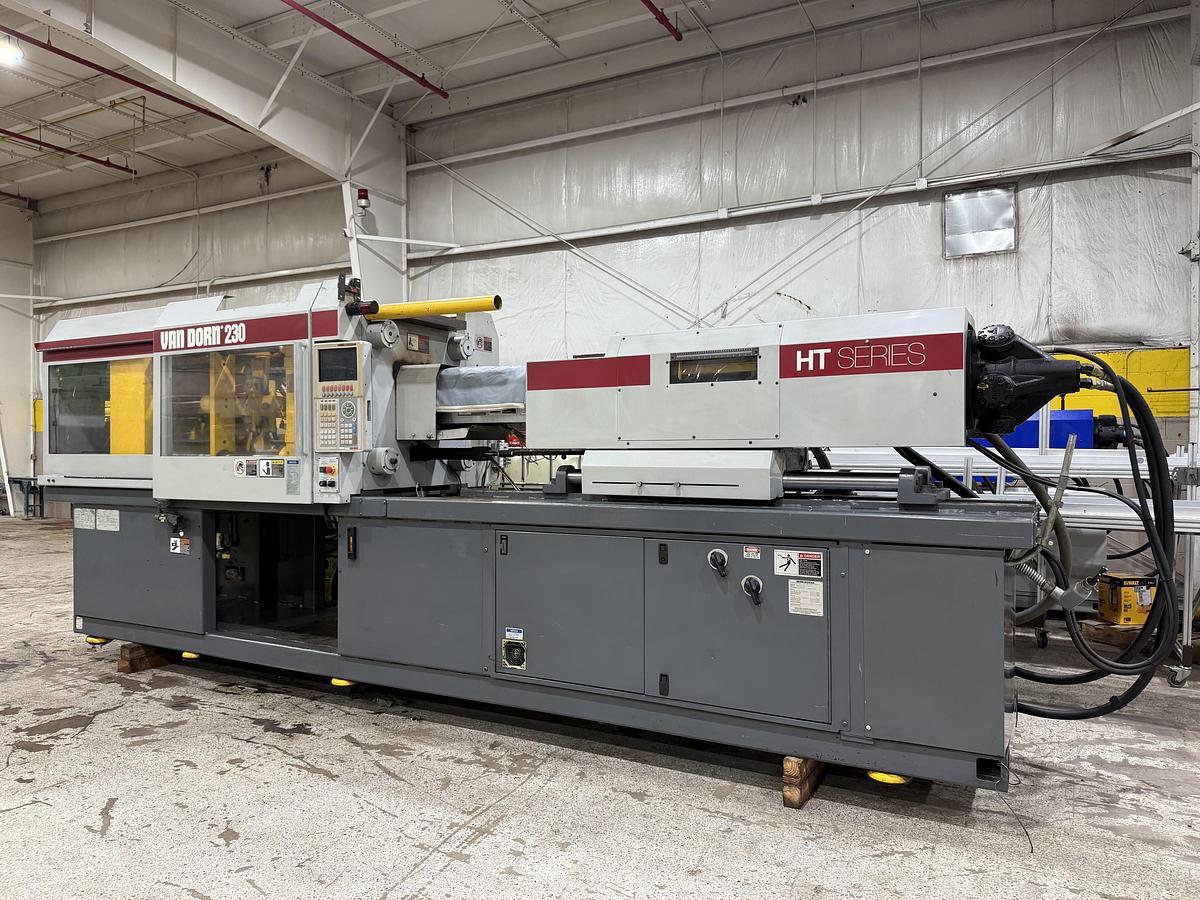

2000 VAN DORN DEMAG 230 Ton Injection Molding Machine 230HT1220 USED

Model: 230HT1220

Serial: 1273

HT Series

Year: 2000

230 Ton

25.4 Oz Shot Size

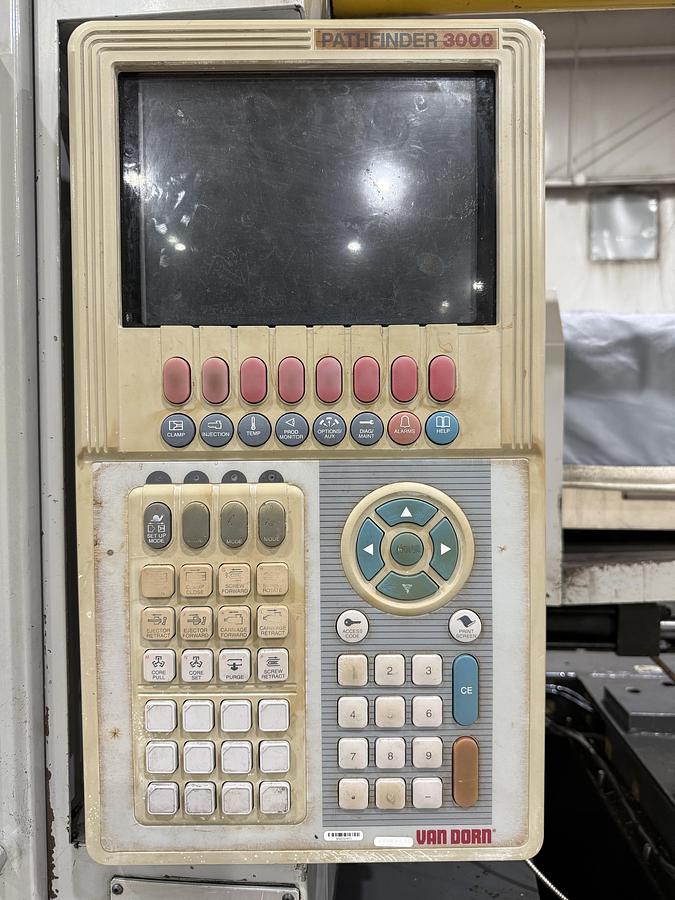

Pathfinder 3000 Control

Toggle Clamp

22" x 22" Tiebar Spacing

32" x 32" Platen

20" Clamp Stroke

42" Daylight Max

7" Min Mold Height

2.36" (60 mm) Screw Diameter

23,264 PSI Injection Pressure

10.6" Injection Stroke

 239 RPM Screw Speed

4.5" Ejector Stroke

4.9 Ejector Tonnage

40 HP

21.7 kW Heater Power

56 GPM Pump Output

120 Gallon Oil Capacity

460 Volt

3 Phase

60 Hz

Corepull

Robot Interface

Buyers are welcome to inspect equipment prior to purchase.

Expedited shipping services are available upon request.

This piece is located at Ideal Machinery, Inc. on our showroom floor.

Located at: 10230 N. Holly Rd, Holly MI 48442

All taxes due are the responsibility of purchaser.
