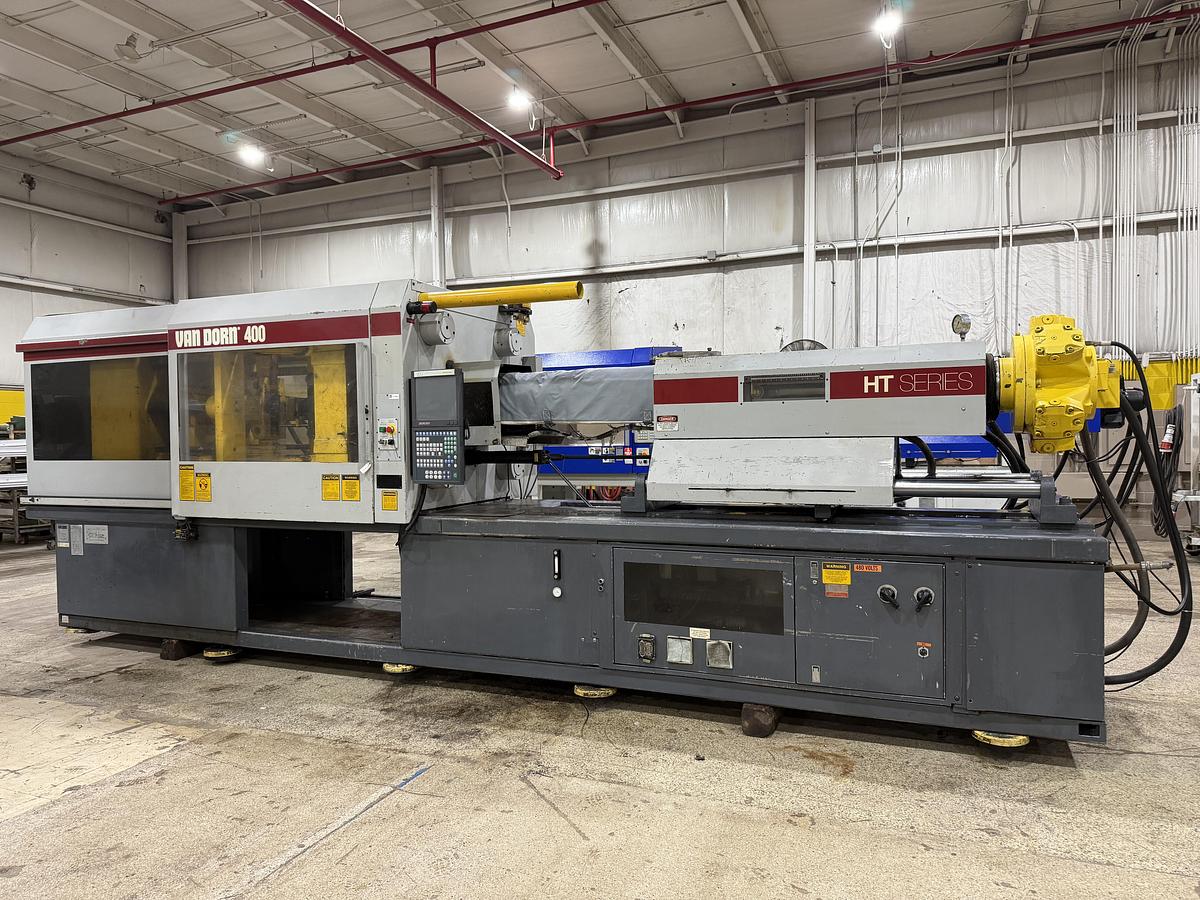

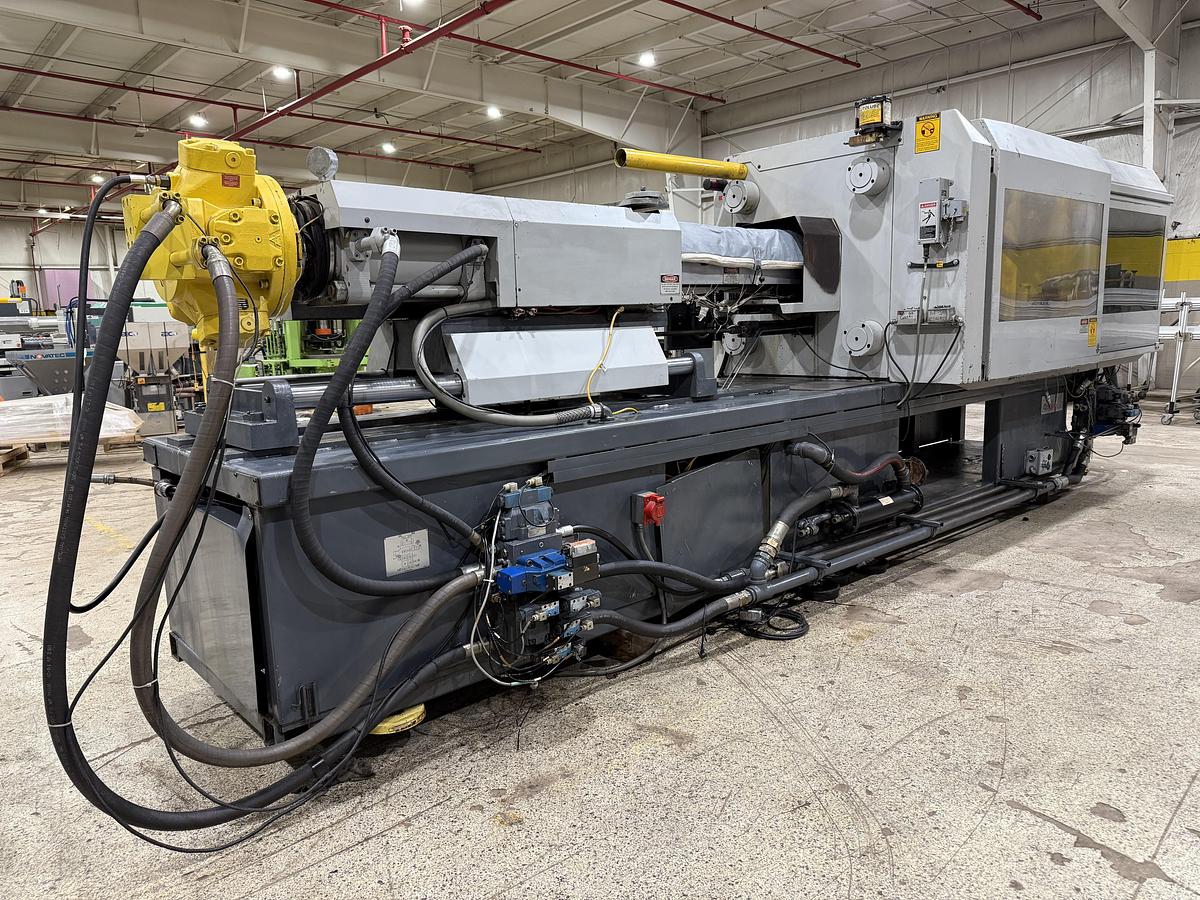

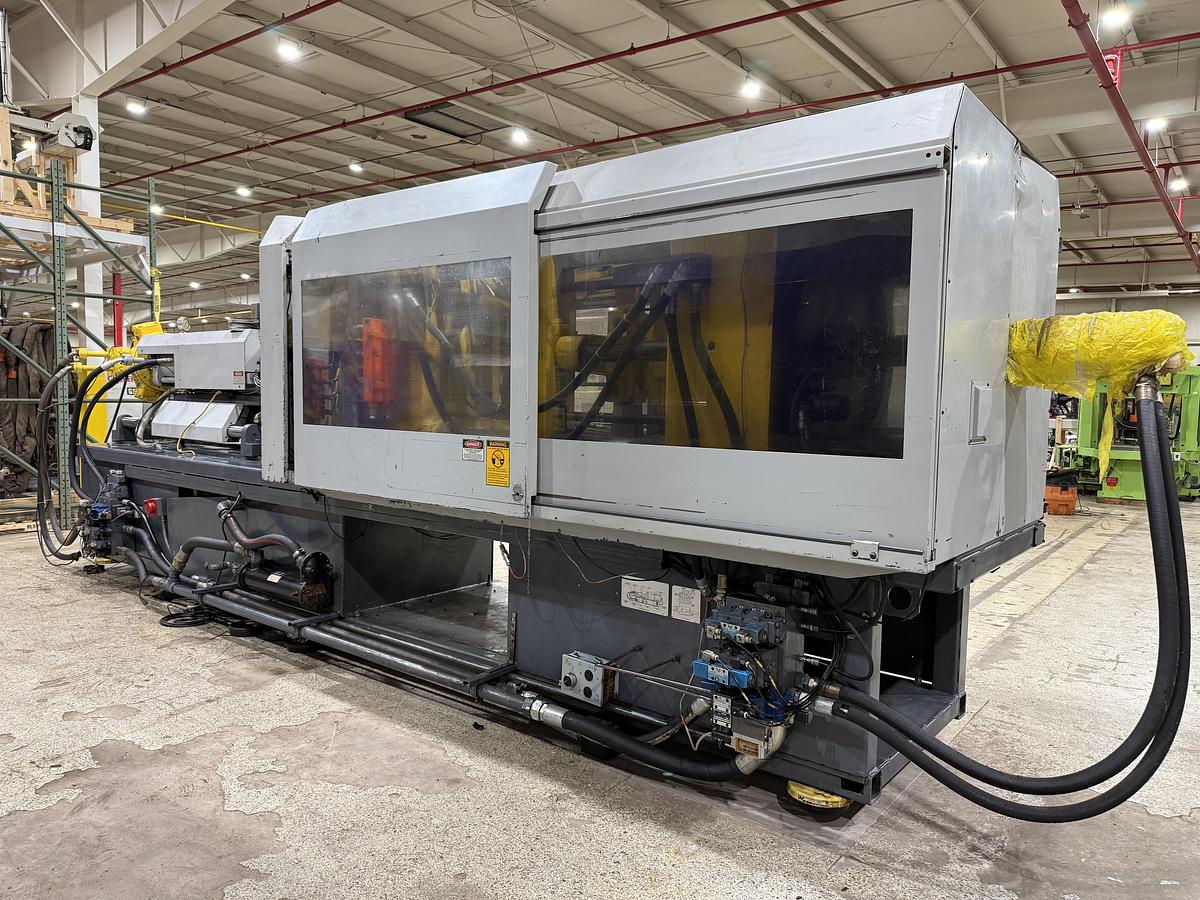

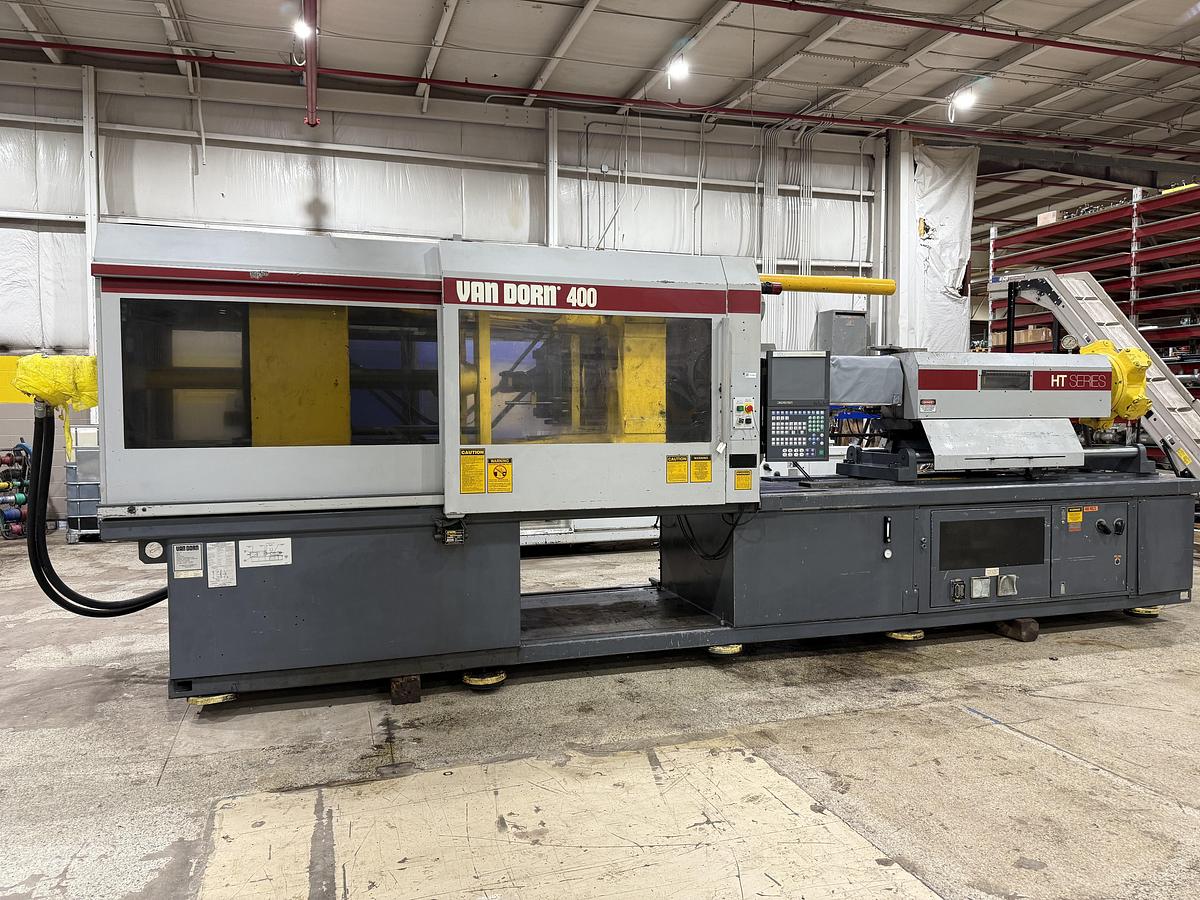

VAN DORN 400 Ton Injection Molding Machine 400-RS-48F-HT USED

Model: 400-RS-48F-HT

Serial: 231

Year: 1991

HT Series

400 Ton

48 Oz Shot Size

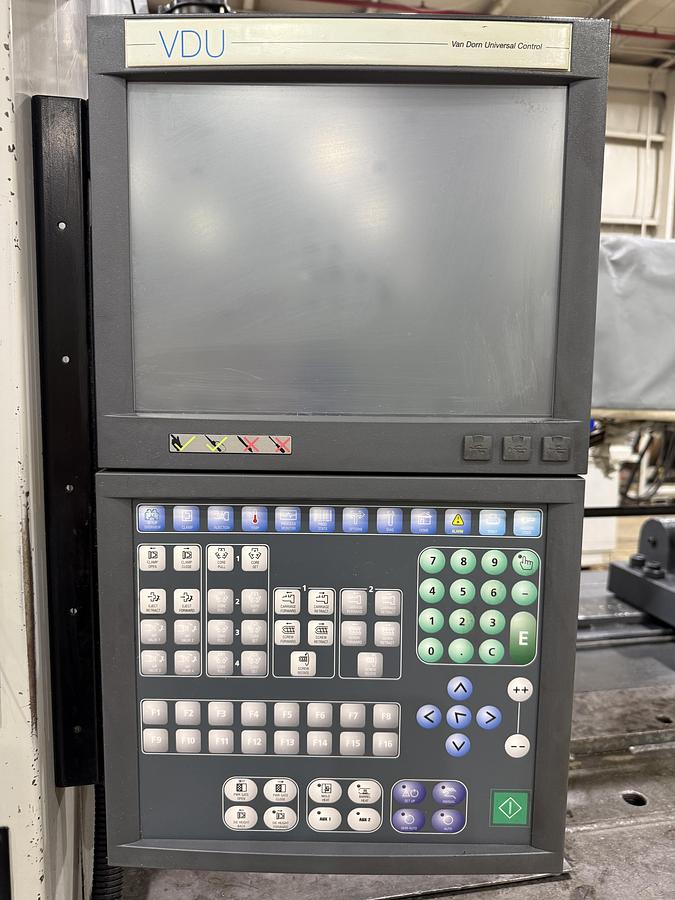

Van Dorn VDU Control

Toggle Clamp

28" x 28" Tiebars

42" x 42" Platen

26" Clamp Stroke

52" Daylight Max

10"/26" Min/Max Mold Height

2.95" (75 mm) Screw Diameter

20,000 PSI Injection Pressure

13" Injection Stroke

30-240 RPM Screw Speed

6" Ejector Stroke

12.5 Ejector Tonnage

60 HP Motor

29.8 kW Heater

170 Gallon Oil Capacity

82 GPM Pump Output

Buyers are welcome to inspect equipment prior to purchase.

Expedited shipping services are available upon request.

This piece is located at Ideal Machinery, Inc. on our showroom floor.

Located at: 10230 N. Holly Rd, Holly MI 48442

All taxes due are the responsibility of purchaser.
