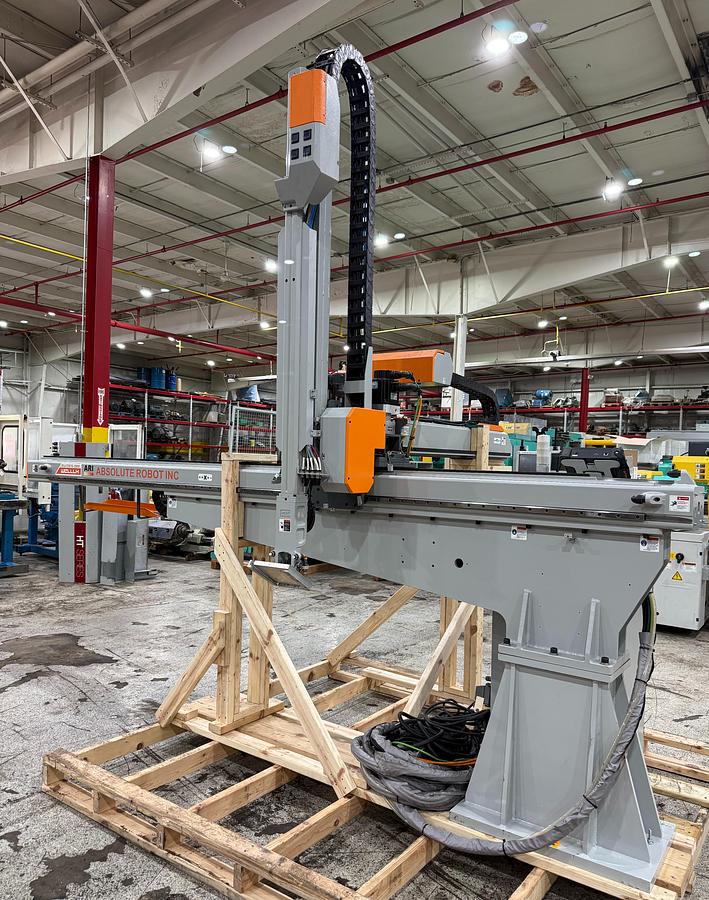

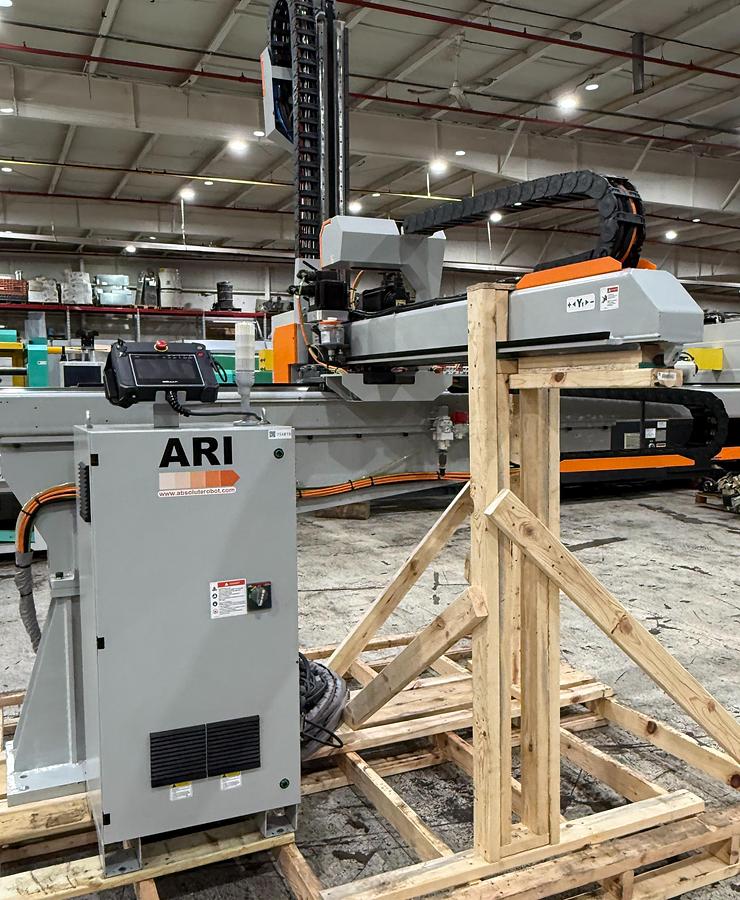

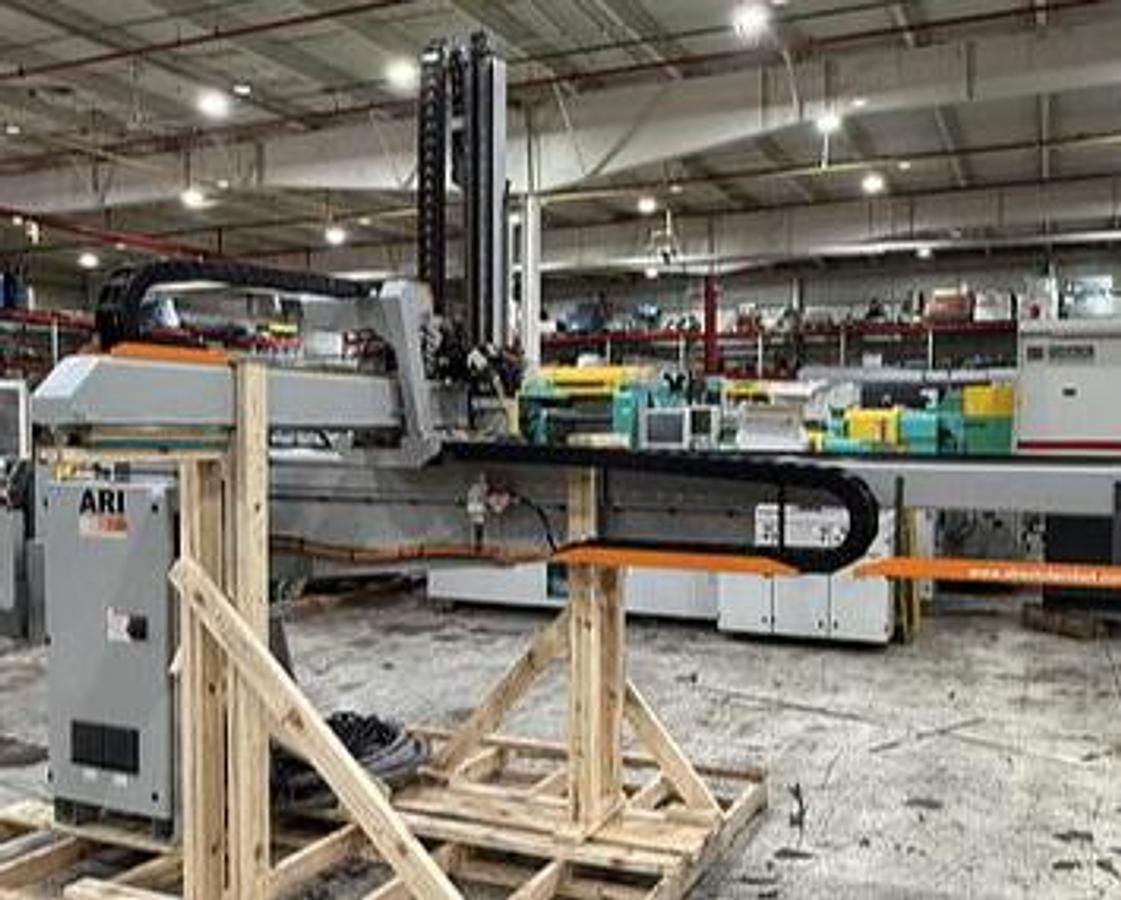

2021 WELLLIH ARI Servo Robot MAXCW15S-P USED

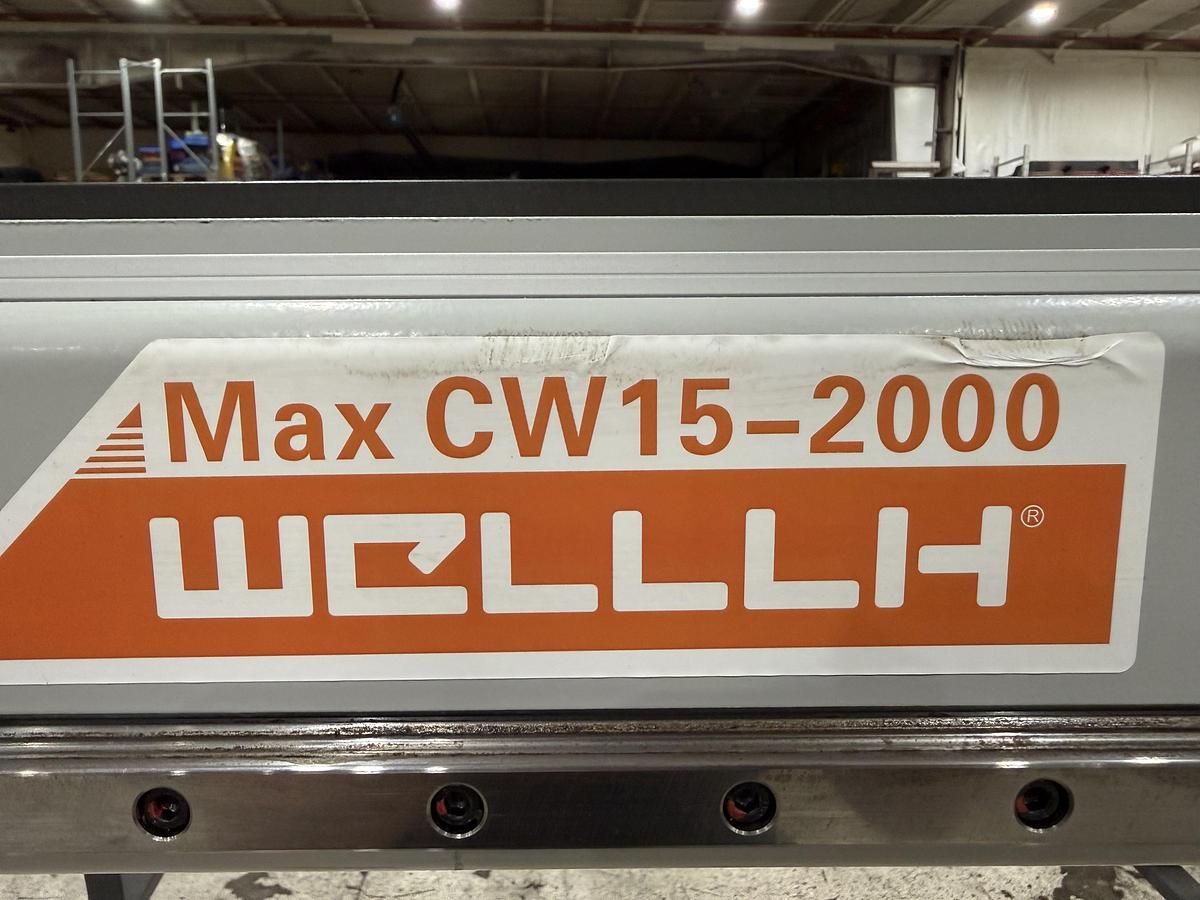

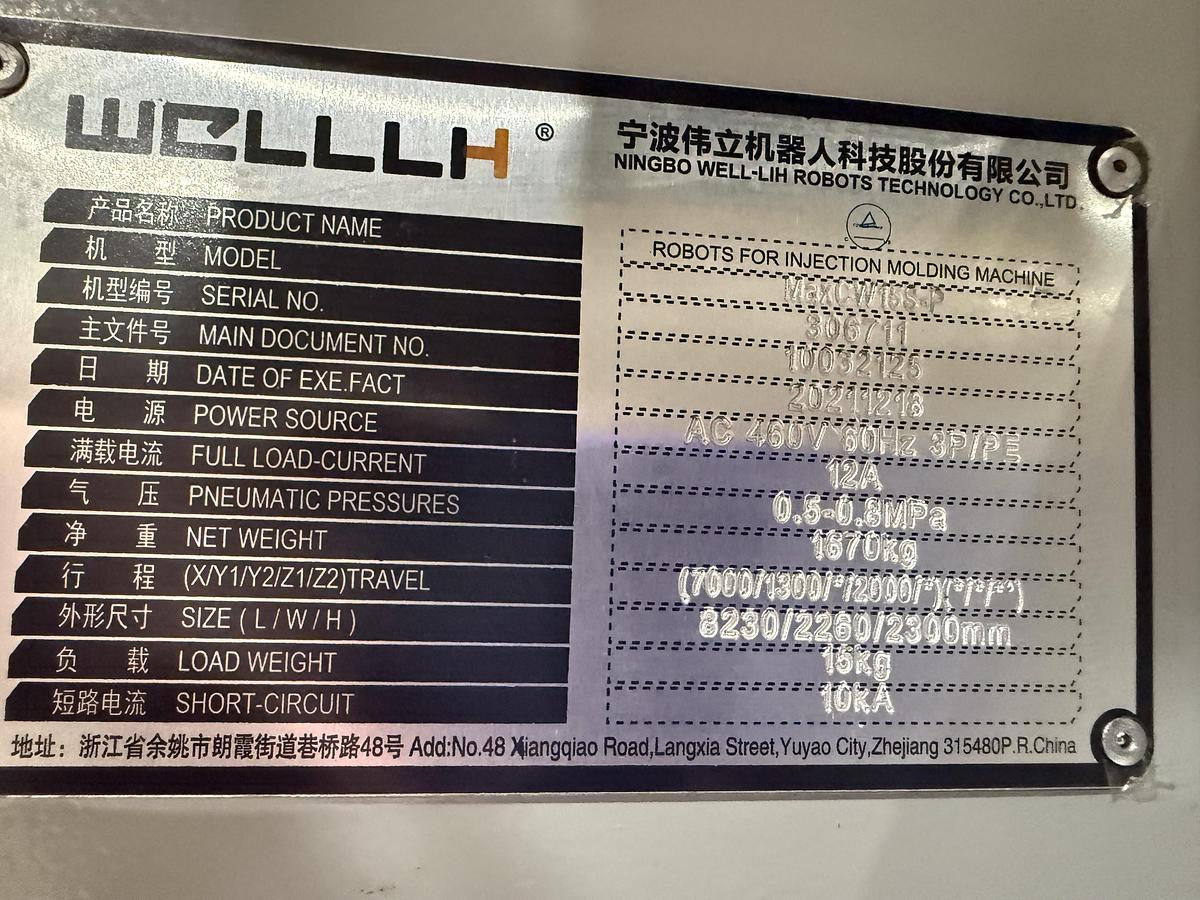

Model: MAXCW15S-P MAXCW15-2000

Movement: Vertical Arm, Servo Telescoping

IMM Range: 850 - 1400 US Tons

Max Payload: 33.07 lbs

Vertical Stroke: 78.74"

Single Arm Strip: 70.47"

Traverse: 118.11"

Gripper Angle: 90°

Drive System: AC Servo Motor

Working Air Pressure: 71.12 - 113.89 PSI

Air Consumption: 67.63 Fluid Oz

460 Volt

3 Phase

60 Hz

Max Amps: 12.1

Riser/Adapter Plate

4 Vacuum Circuits

2 Gripper Circuits

20 Spare Input/Output Signals

Pneumatic "Flip" C-Axis

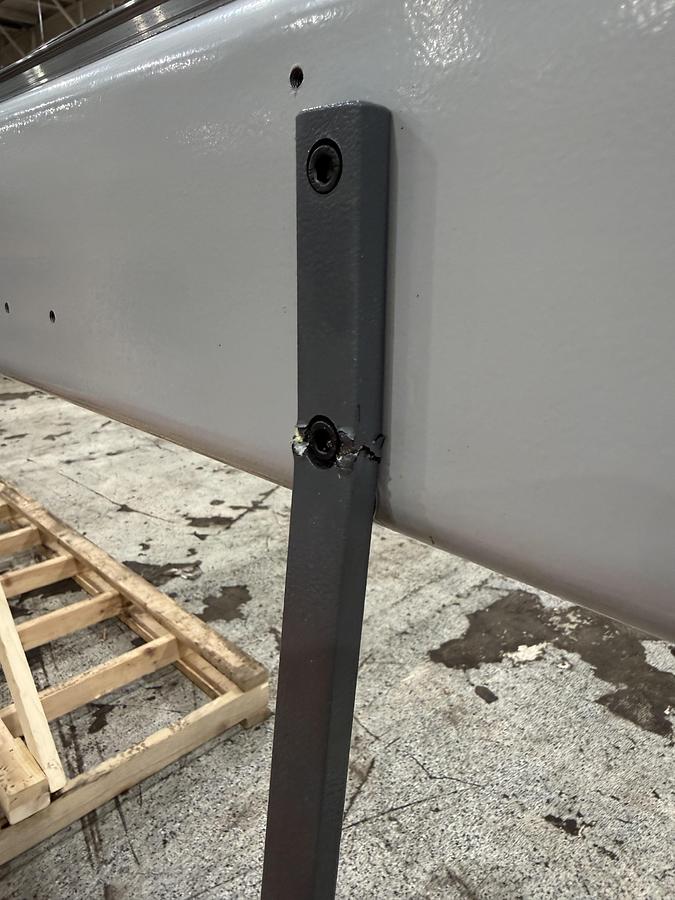

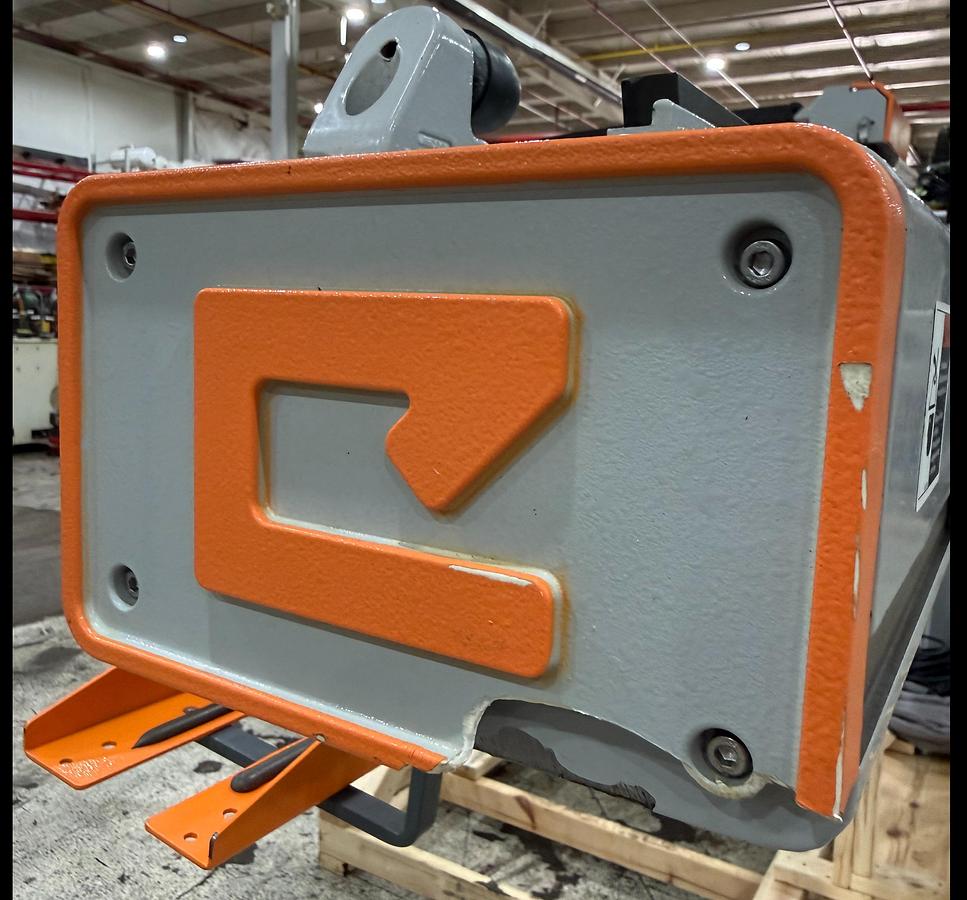

**Cosmetic Damage**

Buyers are welcome to inspect equipment prior to purchase.

Expedited shipping services are available upon request.

This piece is located at Ideal Machinery, Inc. on our showroom floor.

Located at: 10230 N. Holly Rd, Holly MI 48442

All taxes due are the responsibility of purchaser.
